The servo motor can adjust the output power in real time according to the actual working state of the injection molding machine (such as injection, pressure holding, cooling and other different stages), avoiding the energy waste phenomenon of "a big horse pulling a small cart" in traditional motors. For instance, when in standby mode or operating at low speed, the energy consumption of servo motors can be reduced by 30% to 70%

The servo motor is equipped with a high-precision encoder, which can achieve micron-level position control (such as a screw positioning accuracy of ±0.01mm) and precise speed regulation (speed fluctuation ≤±0.5%), ensuring the dimensional consistency and appearance quality of injection molded products.

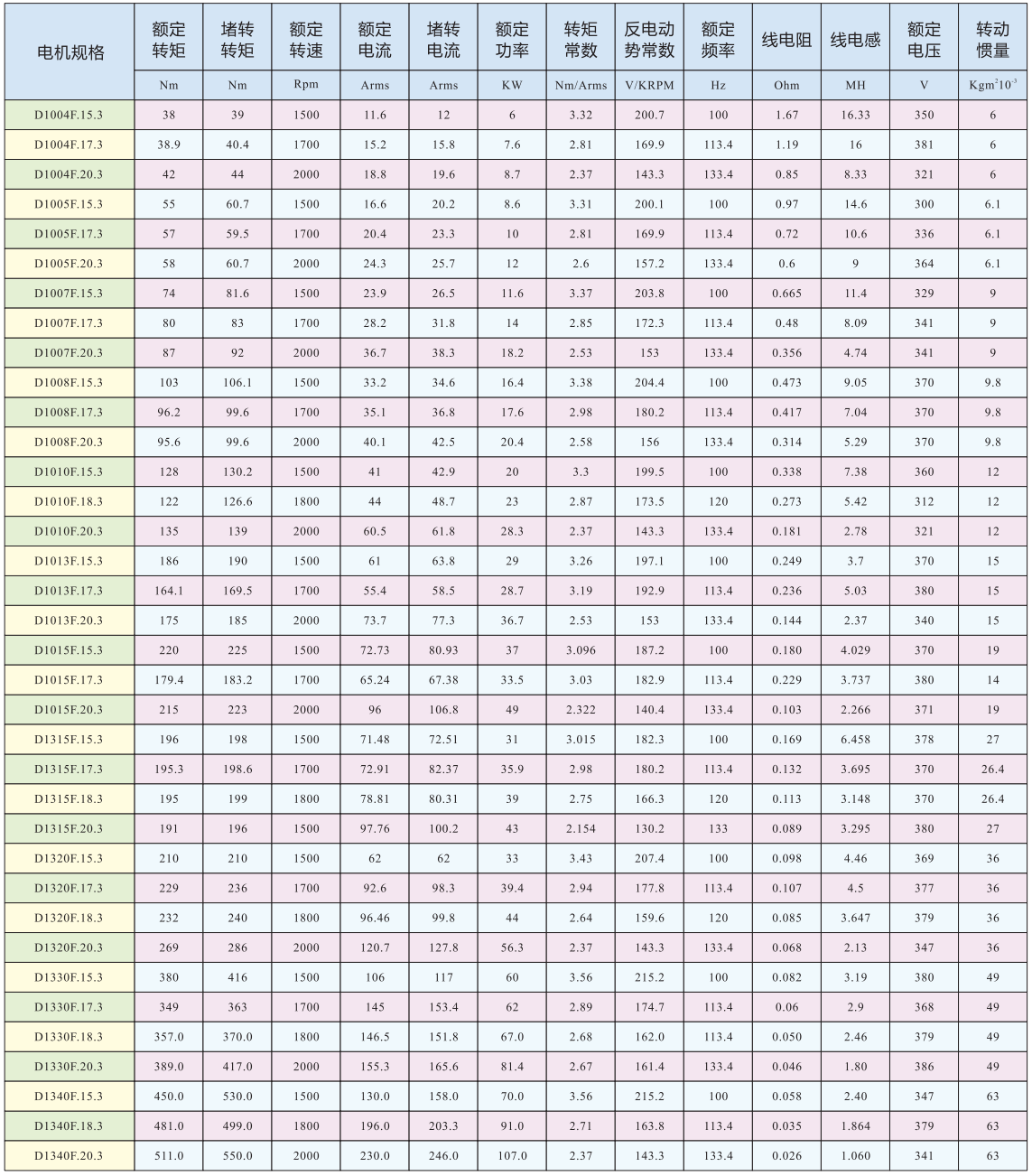

D1104F-D1340F Motor parameters

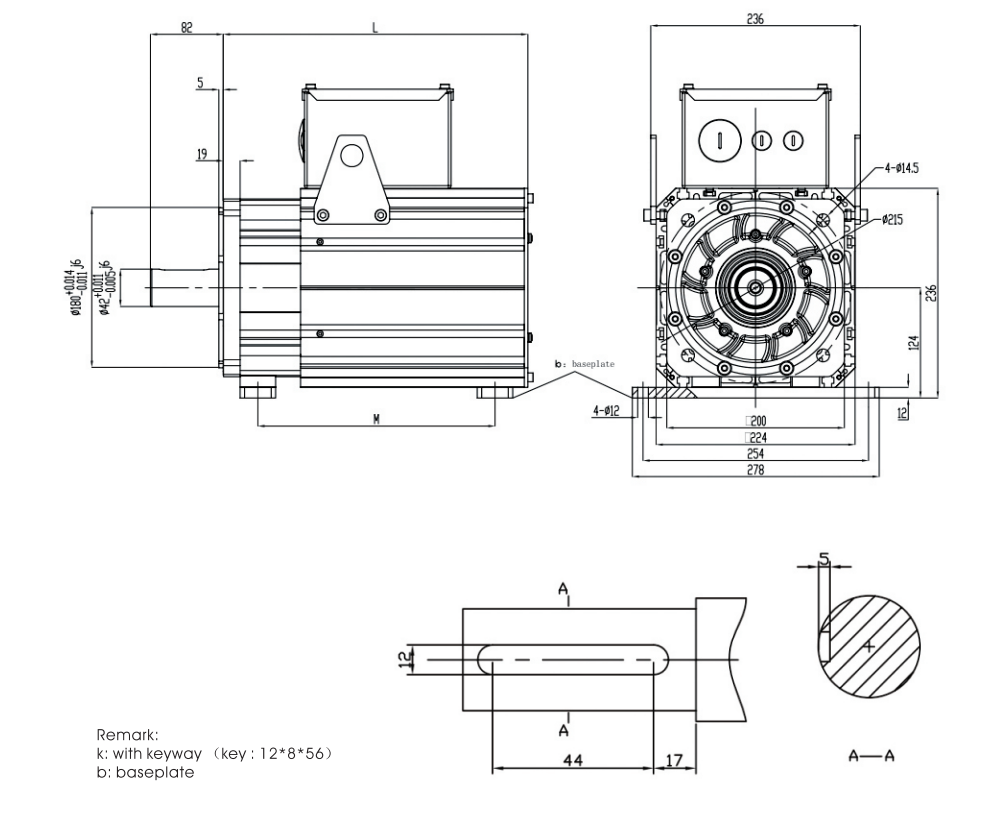

D10F Installation dimensions of series motors

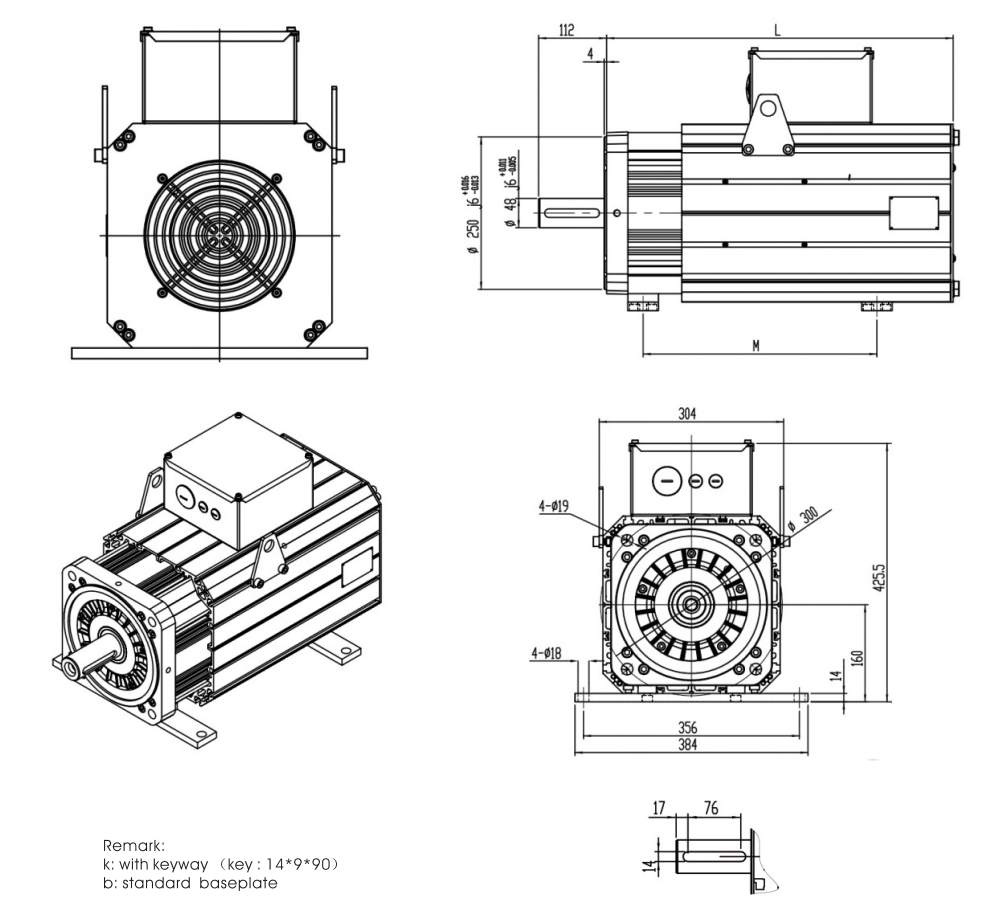

D13F Installation dimensions of series motors
